Electrofusion Fittings

• Application
• other, Pipeline joints in gas, water, and industrial pipelines

• Bend Radius
• >15 x Diameter

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Electrofusion Socket Joint

• Diameter
• 20 mm to 315 mm

• Flexibility
• Rigid

• Length
• Varies with diameter (typically 100 mm to 350 mm)

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 20 mm to 315 mm

• Product Type
• Other, Electrofusion Tee

• Rated Pressure
• PN6, PN8, PN10, PN16

• Sealing Type
• Fusion welded (leak-proof)

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 22 Mpa

• Thickness
• As per standard & diameter

• Tolerance
• 0.1 mm

• Usage
• Water supply, gas distribution, wastewater

• Yield Strength
• >= 19 Mpa

• Application
• other, Water Supply, Gas Distribution, Industrial Piping

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Socket

• Diameter
• 20 mm - 315 mm

• Flexibility
• Rigid

• Length
• Standard or customized

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 20 mm to 315 mm (varies as per requirement)

• Product Type
• Other, Electrofusion Coupler

• Rated Pressure
• PN10/PN16

• Sealing Type
• Butt fusion/electrofusion

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• -40C to +60C

• Tensile Strength
• > 22 MPa

• Thickness
• As per standard size (varies by diameter)

• Thread Type
• NA (Non-threaded)

• Tolerance
• 0.5 mm

• Usage
• Joining HDPE Pipes

• Yield Strength
• >19 MPa

• Application
• other, Water supply, Gas distribution, Industrial pipelines

• Bend Radius
• As per pipe diameter

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Socket / Electrofusion

• Diameter
• 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, 110 mm, 160 mm, 200 mm, 250 mm, 315 mm

• Flexibility
• Rigid

• Length
• Customizable as per requirement

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 20 mm to 315 mm

• Product Type
• Other, Electrofusion End Cap

• Rated Pressure
• PN16

• Sealing Type
• Fusion Bonded

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• 20 MPa

• Thickness
• As per size specification

• Tolerance
• 0.3 mm

• Usage
• Sealing pipe ends in water and gas supply systems

• Yield Strength
• 18 MPa

• Application
• other, Water Supply, Gas Distribution, Industrial Pipelines

• Bend Radius
• As per pipe diameter

• Color
• Black with Blue Line

• Connection
• Other, Electrofusion

• Connection Type
• Socket Fusion

• Diameter
• 20 mm to 630 mm

• Flexibility
• Rigid

• Length
• Customizable / Standard Length

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 20 mm to 630 mm

• Product Type
• Other, Electrofusion Elbow 90 Degree

• Rated Pressure
• PN10, PN16

• Sealing Type
• Integral Fusion Weld

• Section Shape
• Round

• Shape
• Other, Elbow 90

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• -40C to +60C

• Tensile Strength
• > 15 MPa

• Thickness
• 3 mm to 12 mm (varies by diameter)

• Tolerance
• 0.5 mm

• Usage
• Joining HDPE Pipes at 90 angles

• Yield Strength
• > 20 MPa

• Application
• other, Water Supply, Gas Distribution, Irrigation

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Socket Weld

• Diameter
• 20 mm - 315 mm

• Flexibility
• Rigid

• Length
• Custom / As per size

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 20 mm - 315 mm

• Product Type
• Other, Electrofusion Reducer

• Rated Pressure
• up to 16 Bar

• Sealing Type
• Integral heat-fusion

• Section Shape
• Round

• Shape
• Other, Reducer

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• -40C to +80C

• Tensile Strength
• >23 MPa

• Thickness
• As per size specification

• Tolerance
• 0.2 mm

• Usage
• Pipe Fitting / Fluid Transfer

• Yield Strength
• >19 MPa

• Application
• other, Pipeline Control Systems

• Color
• Black with Blue Stripes

• Connection
• Other, Electrofusion

• Connection Type
• Socket Fusion

• Diameter
• 20 mm to 110 mm

• Flexibility
• Rigid

• Length
• Customized

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 20 mm - 110 mm

• Product Type

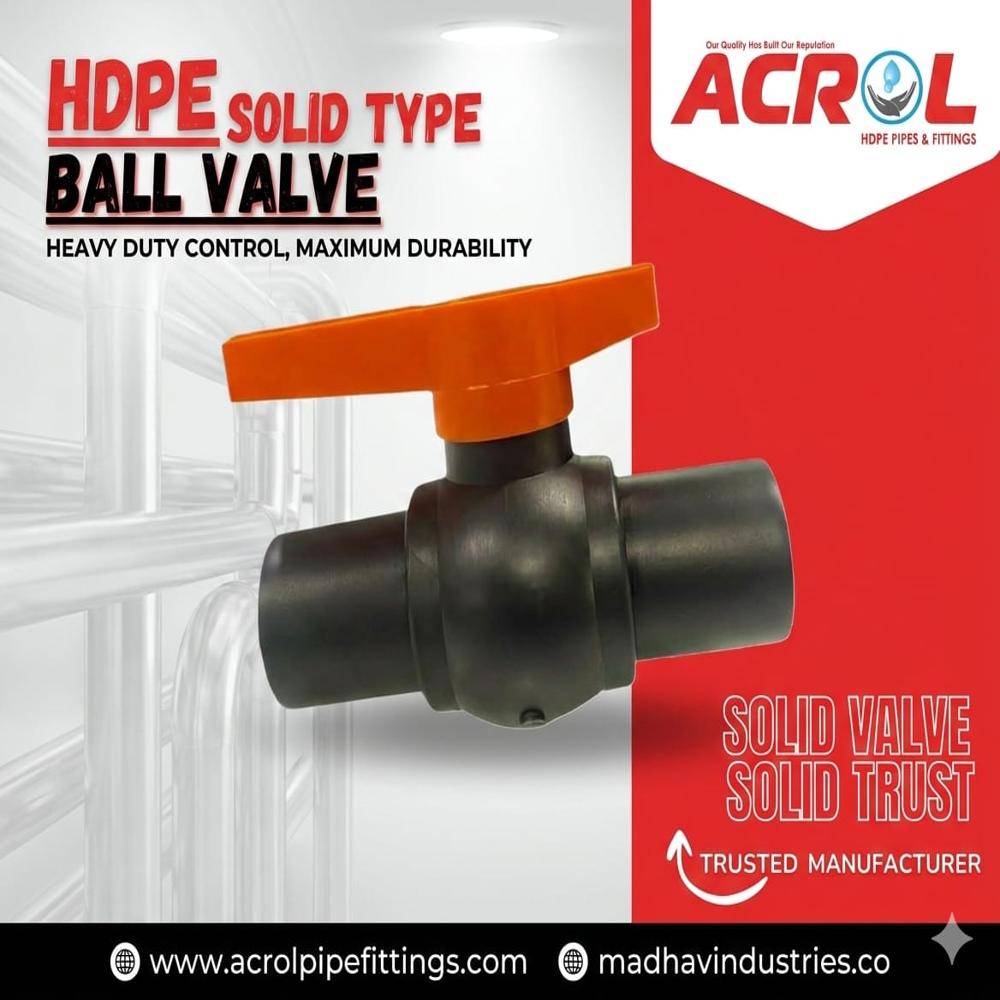

• Other, Electrofusion Ball Valve

• Rated Pressure
• PN16

• Sealing Type
• O-ring Sealed

• Section Shape
• Round

• Shape
• Other, Ball Valve

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -20C to +40C

• Tensile Strength
• >20 MPa

• Thickness
• As per Diameter & Pressure Rating

• Tolerance
• 0.2 mm

• Usage
• Water Supply, Gas Distribution

• Yield Strength
• >20 MPa

• Application
• other, Water supply, Gas distribution, Industrial piping systems

• Bend Radius
• Not applicable for fitting

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Socket Electrofusion

• Diameter
• 20 mm to 315 mm

• Flexibility
• Rigid fitting

• Length
• As per standard, depends on diameter

• Material
• Other

• Material Grade
• PE100 or PE80

• Outer Diameter
• 20 mm - 315 mm

• Product Type
• Other, Electrofusion Elbow 45 Degree

• Rated Pressure
• PN10, PN16

• Sealing Type
• Heat-fused (welded joint)

• Section Shape
• Round

• Shape
• Other, 45 Degree Elbow

• Standard
• Other

• Surface Treatment
• Other, Smooth, untreated

• Temperature Range
• -40C to +80C

• Tensile Strength
• > 23 MPa

• Thickness
• Varies by specification (typically 3 mm to 8 mm)

• Tolerance
• 0.2 mm

• Usage
• Pipe fitting for water and gas distribution

• Yield Strength
• Minimum 21 MPa

• Application
• other, Water supply, gas distribution, industrial piping

• Bend Radius
• 15 x outer diameter (min)

• Coating Type
• UV Stabilized

• Color
• Black

• Connection
• Other, Electrofusion Welding

• Connection Type
• Socket Electrofusion

• Diameter
• 25 mm to 110 mm (saddle outlet)

• Flexibility
• Rigid

• Length
• Varies as per size and specification

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 63 mm to 315 mm (main pipe)

• Product Type
• Other, Electrofusion Saddle

• Rated Pressure
• PN16

• Sealing Type
• Melt fusion integrated seal

• Section Shape
• Other, Cylindrical with Saddle Branch

• Shape
• Other, Saddle

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• -10C to +40C

• Tensile Strength
• 23 MPa

• Thickness
• 6 mm to 18 mm (as per size)

• Tolerance
• 0.2 mm

• Usage
• Plumbing and irrigation fittings

• Yield Strength
• 20 MPa

• Application
• other, Water and Gas Pipelines

• Bend Radius
• Min 25 x Pipe OD

• Coating Type
• No external coating

• Color
• Black

• Connection
• Other, Threaded / Fusion Joint

• Connection Type
• Butt Fusion / Electro-Fusion

• Diameter
• 63 mm to 315 mm

• Flexibility
• High Flexibility

• Length
• Customized / Standard length

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 63 mm to 315 mm (varies)

• Product Type
• Other, Integrated Saddle

• Rated Pressure
• PN 6 / PN 10 / PN 16

• Sealing Type
• Integrated Rubber Seal

• Section Shape
• Other, Curved

• Shape
• Other, Saddle

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -20C to +60C

• Tensile Strength
• >20 MPa

• Thickness
• 3-10 mm (varies with model)

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.1 mm

• Usage
• Branch/Service Connections

• Yield Strength
• >19 MPa

• Application
• other, Water/Gas Distribution Networks

• Color
• Black with Blue Stripes

• Connection
• Other, Electrofusion Socket

• Connection Type
• Electrofusion

• Diameter
• 20 mm to 63 mm (Branch Size)

• Flexibility
• Rigid

• Length
• Standard Lengths; Custom on Request

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 63 mm to 315 mm (Main Pipe Size)

• Product Type

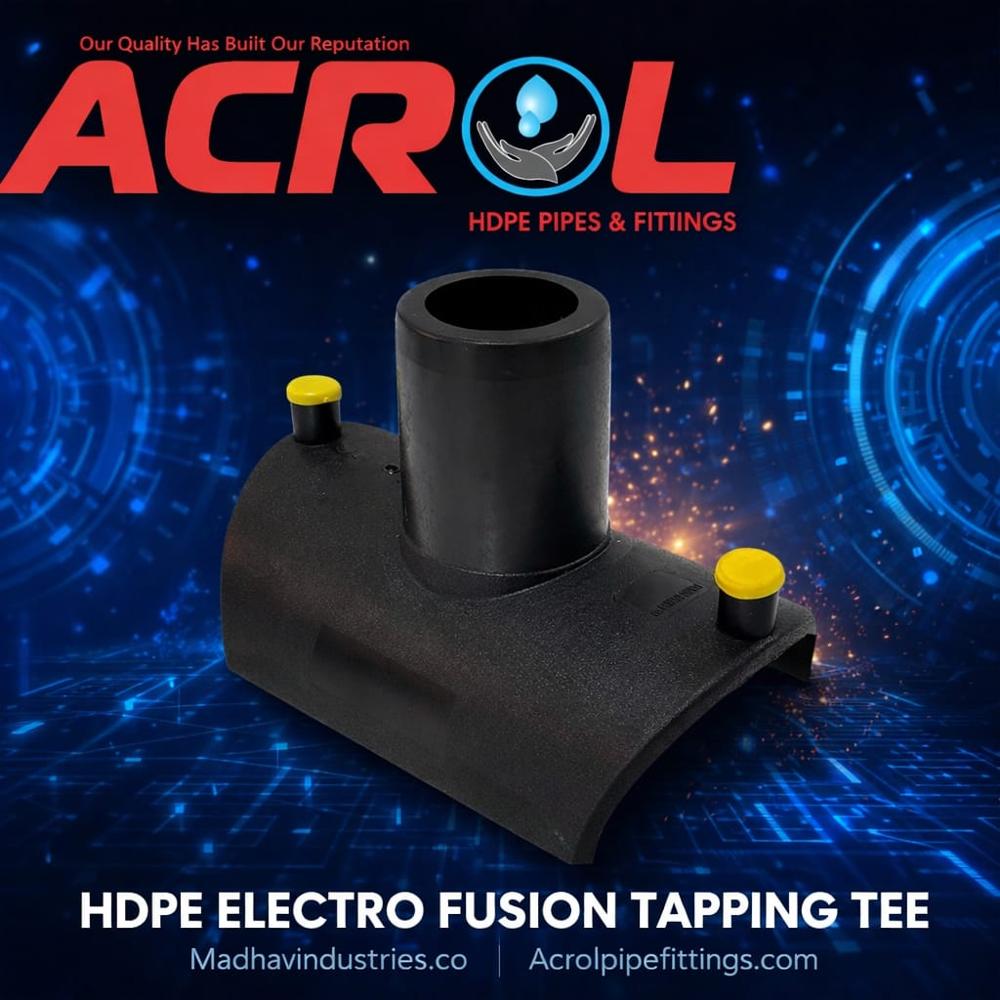

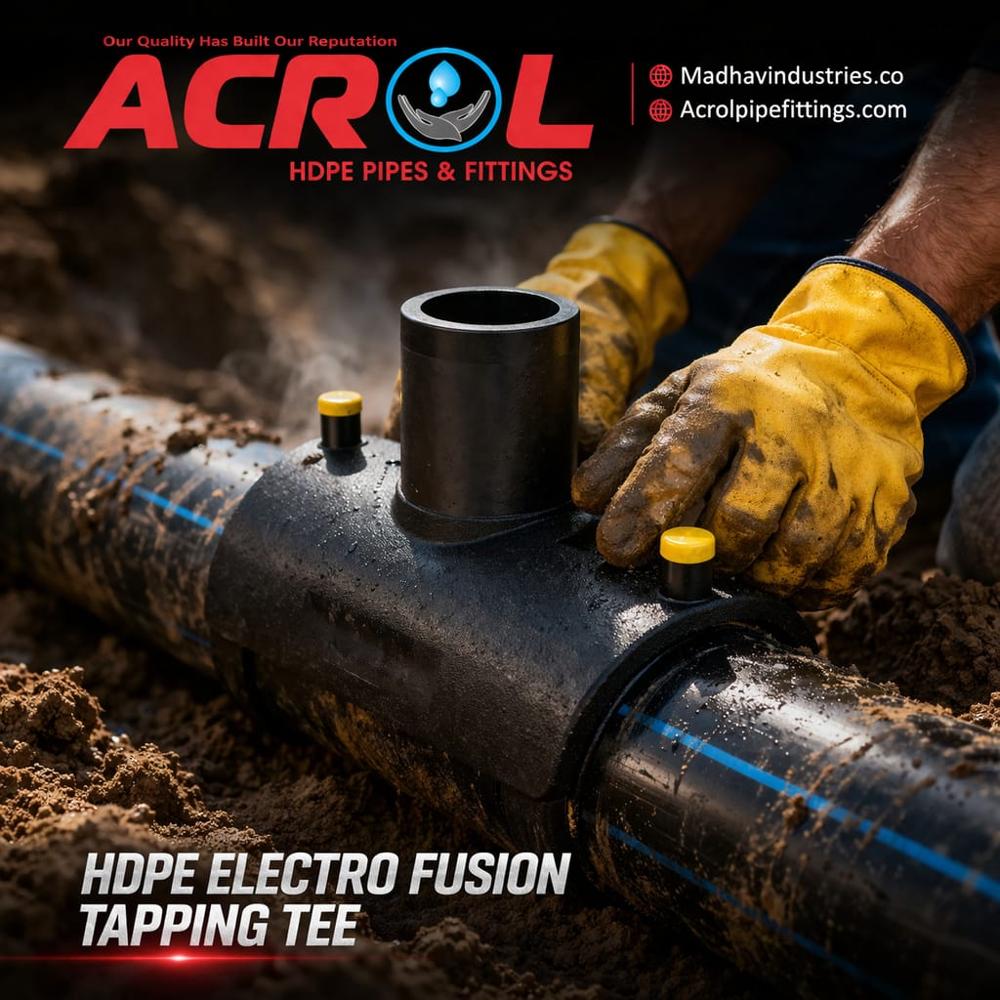

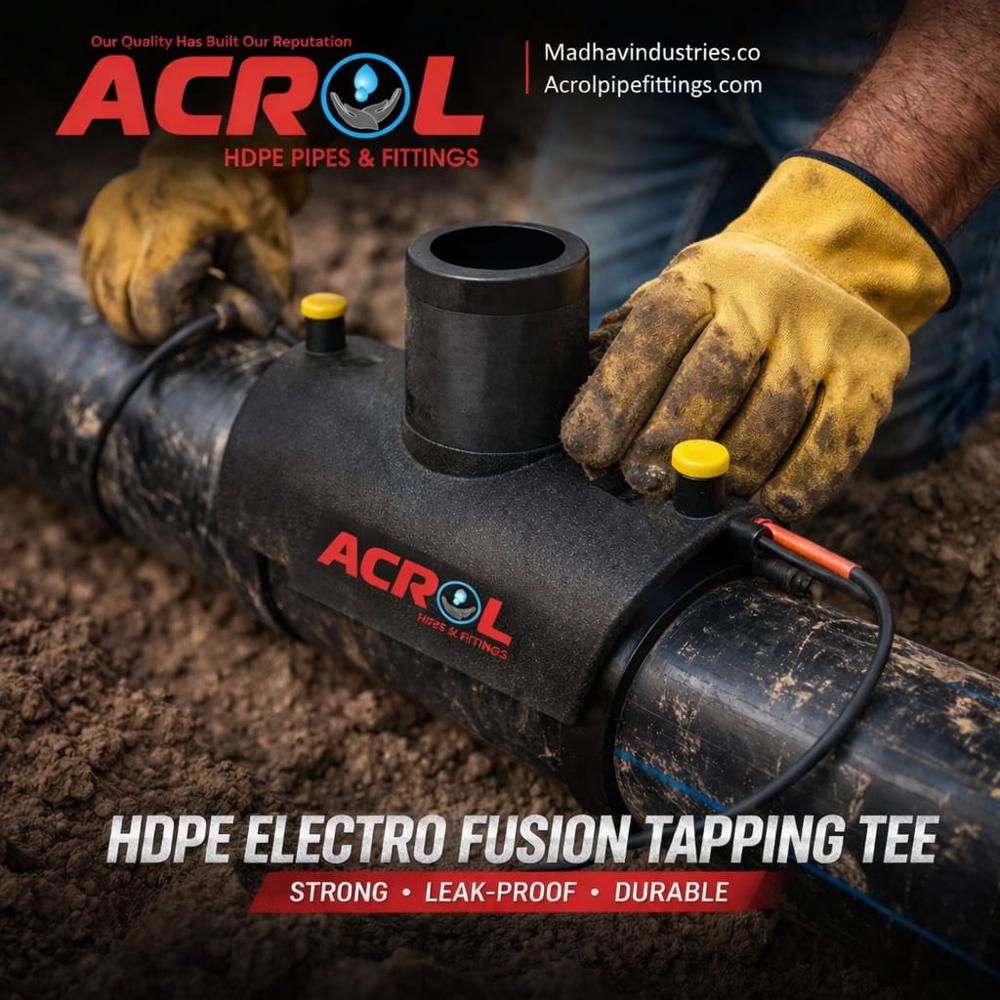

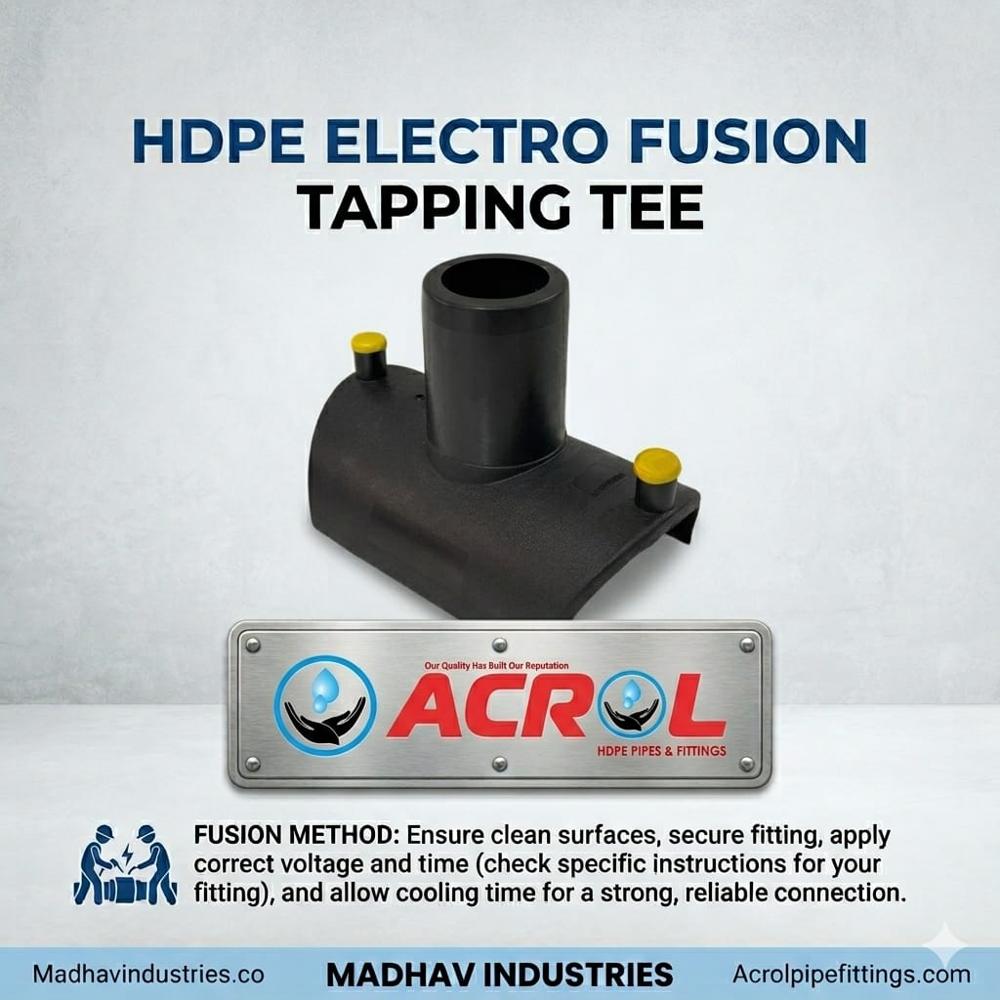

• Other, Electrofusion Tapping Tee

• Rated Pressure
• PN16 (16 bar)

• Sealing Type
• Fusion Welded

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other

• Surface Treatment
• Other, Smooth (Untreated)

• Temperature Range
• -10C to +40C

• Tensile Strength
• >=22 MPa

• Thickness
• Conforms to SDR rating

• Tolerance
• 1% (General)

• Usage
• Water/Gas Supply Tapping

• Yield Strength
• >=19 MPa

• Application
• other, Water supply, gas distribution, industrial pipe systems

• Coating Type
• Epoxy powder

• Color
• Yellow & Black

• Connection
• Other, Electrofusion socket

• Connection Type
• Electrofusion cables/clamps

• Diameter
• Compatible with pipe couplers from 20 mm to 315 mm

• Flexibility
• Rigid

• Length
• 370 mm

• Material
• Other , Industrial grade high-impact plastic and metal housing

• Material Grade
• IP54-certified enclosure

• Outer Diameter
• N/A (machine body)

• Product Type
• Other, Electrofusion Welding Machine

• Rated Pressure
• Up to 16 bar (as per pipe specifications)

• Section Shape
• Other, Box

• Shape
• Rectangular

• Standard
• Other, ISO 12176-2

• Surface Treatment
• Other, Powder coated

• Temperature Range
• -10C to +50C (operating)

• Thickness
• 3 mm (housing)

• Tolerance
• 1% output voltage tolerance

• Usage
• For joining HDPE/PP/PB pipes and fittings by electrofusion

• Application
• other, Water Supply, Gas Pipeline, Industrial Piping, Irrigation

• Bend Radius
• As per fitting design

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Welded Electrofusion

• Diameter
• 63 mm to 160 mm

• Flexibility
• Rigid

• Length
• Standard as per size (e.g., 90 mm for 63 mm OD)

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 63 mm, 90 mm, 110 mm, 160 mm (custom sizes available)

• Product Type
• Other, Electrofusion Elbow

• Rated Pressure
• PN16 (16 bar)

• Sealing Type
• Melt Fusion

• Section Shape
• Round

• Shape
• Other, Elbow (90 Degree)

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 19 MPa

• Thickness
• 10 mm

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting For Gas/Water Systems

• Yield Strength
• >= 23 MPa

• Application
• other, Pipeline Jointing / Distribution System

• Bend Radius
• Depends on fitting size; typically not bendable

• Color
• Black with Blue Stripes

• Connection
• Other, Electrofusion

• Connection Type
• Socket Weld (Electrofusion)

• Diameter
• 20 mm to 315 mm

• Flexibility
• High

• Length
• Varies with model

• Material
• Other , High Density Polyethylene (HDPE)

• Material Grade
• PE100

• Outer Diameter
• 20 mm to 315 mm

• Product Type
• Other, HDPE Electrofusion Fitting

• Rated Pressure
• PN6, PN10, PN16

• Sealing Type
• Fusion Welded

• Section Shape
• Round

• Shape
• Other, Elbow / Coupler / Tee / Reducer (as per model)

• Standard
• Other, ISO 4427 / DIN 8074 / IS 4984

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +80C

• Tensile Strength
• >22 MPa

• Thickness
• 4 mm to 20 mm (depending on size)

• Tolerance
• 0.05 mm

• Usage
• Water, Gas, and Industrial Fluids Piping Systems

• Yield Strength
• >18 MPa

• Application
• other, Oil & Gas / Petrochemical / Water Treatment / Power Plants / Chemical Industries

• Bend Radius
• 1.5D (Standard); Custom available

• Coating Type
• Epoxy / Black Paint / Galvanized

• Color
• Black / Grey / Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• DN15 - DN1200 (as per standard)

• Flexibility
• Rigid

• Length
• Customized as per specification

• Material
• Other

• Material Grade
• A234 WPB / SS304 / SS316 / IS 1239 / IS 3589 / S235 / Others as required

• Outer Diameter
• 21.3 mm to 1219 mm

• Product Type
• Other, Fabricated 45 Degree Elbow

• Rated Pressure
• Sch 10 to Sch 80, Up to 2500 psi

• Sealing Type
• Metal-to-Metal Welded

• Section Shape
• Round

• Shape
• Other, Elbow (45 Angle)

• Standard
• Other

• Surface Treatment
• Other, Shot Blasted / Hot Dipped Galvanized / Black Painted

• Temperature Range
• -20C to 600C

• Tensile Strength
• > 415 MPa (varies by material)

• Thickness
• 3 mm to 25 mm (customizable)

• Thread Type
• N/A (Welded Connection)

• Tolerance
• 1 mm

• Usage
• Pipeline Direction Change / Fluid Transport / Industrial Piping

• Yield Strength
• > 205 MPa (varies by material)
