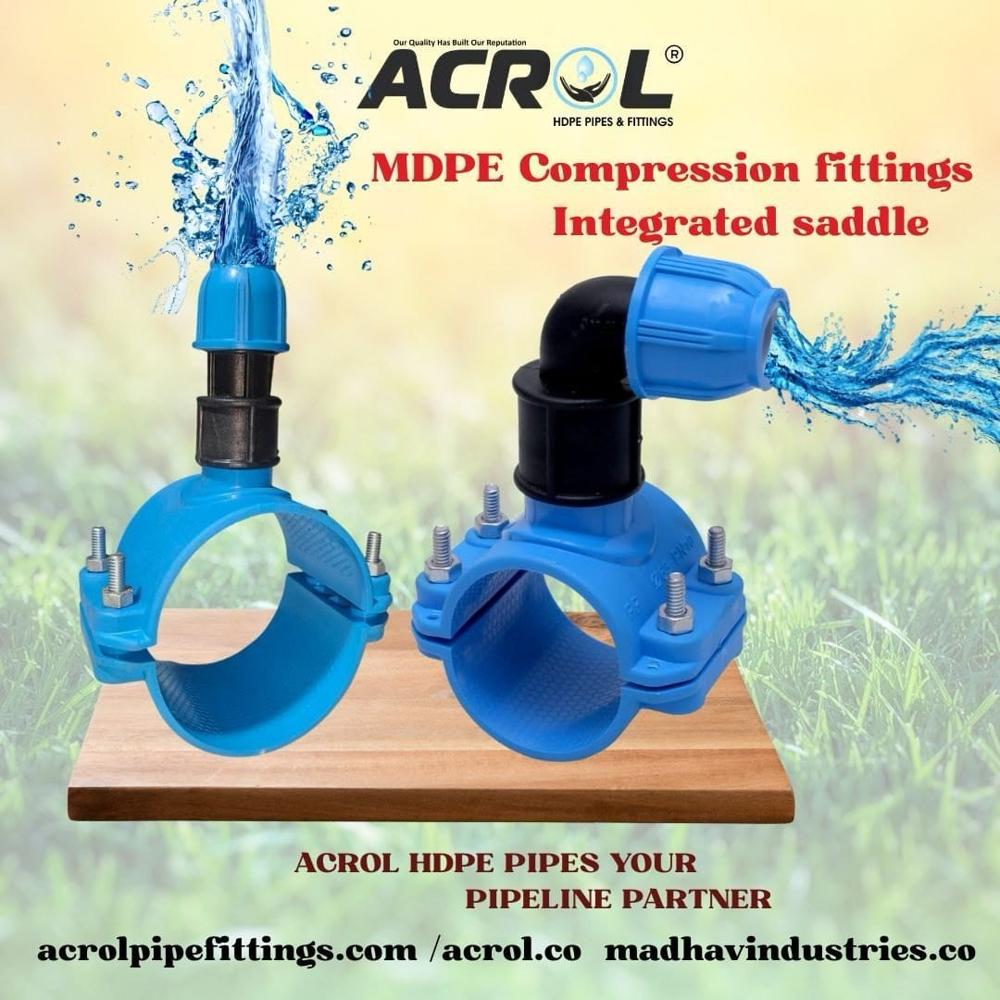

Integrated Saddle
Integrated Saddle Specification
- Bend Radius
- Min 25 x Pipe OD
- Yield Strength
- >19 MPa
- Connection Type
- Butt Fusion / Electro-Fusion
- Tolerance
- 0.1 mm
- Thread Type
- BSP (British Standard Pipe)
- Diameter
- 63 mm to 315 mm
- Temperature Range
- -20C to +60C
- Flexibility
- High Flexibility
- Sealing Type
- Integrated Rubber Seal
- Coating Type
- No external coating
- Tensile Strength
- >20 MPa
- Product Type
- Integrated Saddle
- Material
- Other
- Connection
- Threaded / Fusion Joint
- Shape
- Saddle
- Standard
- Other
- Surface Treatment
- Smooth Finish
- Outer Diameter
- 63 mm to 315 mm (varies)
- Section Shape
- Curved
- Length
- Customized / Standard length
- Thickness
- 3-10 mm (varies with model)
- Color
- Black
- Usage
- Branch/Service Connections
- Rated Pressure
- PN 6 / PN 10 / PN 16
- Application
- Water and Gas Pipelines
- Material Grade
- PE100
- UV Stability
- UV Stabilized
- Corrosion Resistance
- Excellent
- Service Life
- >50 years (under recommended conditions)
- Compliance
- WRAS Approved, Drinking Water Safe
- Leakage Rate
- Nil under Standard Test Conditions
- Fitting End
- Serrated or Grooved
- Packaging Type
- Polybag / Carton Box
- Installation Method
- Manual or Fusion Weld
- Environmental Impact
- Recyclable Material
About Integrated Saddle
Commercial Applications & Direction of Use
The Integrated Saddle excels in commercial sectors, supporting reliable branch and service connections for water and gas pipelines. Its robust design makes it ideal for infrastructure, municipal utilities, and industrial applications. Users can install the saddle via manual or fusion welding for a secure fit, following recommended procedures. Its versatility caters to both new installations and system upgrades, ensuring ease of use while maintaining drinking-water safety. Specify the required diameter and connection type to suit your exact pipeline specifications.
Supply Ability, Export Market & Sample Availability
With outstanding supply ability, we cater to large-scale procurement deals domestically and internationally. Major export markets include Asia, the Middle East, and Africa, ensuring prompt arrival and reliable distribution. Interested buyers can request sample units to evaluate performance before finalizing bulk orders or negotiating the asking price. We support distributors, manufacturers, and suppliers in securing top-tier products and seamless logistics, reinforcing long-term business relationships and consistent market availability.
FAQ's of Integrated Saddle:
Q: How do I install the Integrated Saddle on pipelines?
A: The Integrated Saddle can be installed using either manual methods or fusion welding, including butt fusion or electro-fusion connections. Always follow the manufacturer's installation guidelines for optimal sealing and durability.Q: What types of pipelines can use this Integrated Saddle?
A: This saddle is designed for use in water and gas pipelines, suitable for applications requiring secure branch or service connections with high flexibility and no leakage under standard test conditions.Q: Where can the Integrated Saddle be applied?
A: The saddle is ideal for municipal, commercial, and industrial pipeline projects, particularly where drinking water safety, corrosion resistance, and UV stability are paramount. It is WRAS approved and suitable for both indoor and outdoor installations.Q: What are the benefits of using a WRAS-approved Integrated Saddle?
A: A WRAS-approved Integrated Saddle guarantees compliance with strict quality and safety standards for drinking water systems, ensuring no contamination while providing outstanding longevity and zero leakage.Q: What is the process for procuring a sample of the Integrated Saddle?
A: To request a sample, contact the supplier with your specific requirements regarding diameter and connection type. Samples are available for evaluation prior to bulk ordering, helping you make an informed decision.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
