Pipe Fittings

• Application
• other, Water supply, gas distribution, industrial pipelines

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Socket Fusion

• Diameter
• 20 mm to 400 mm

• Flexibility
• Rigid

• Length
• 120 mm to 350 mm

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 20 mm to 400 mm

• Product Type

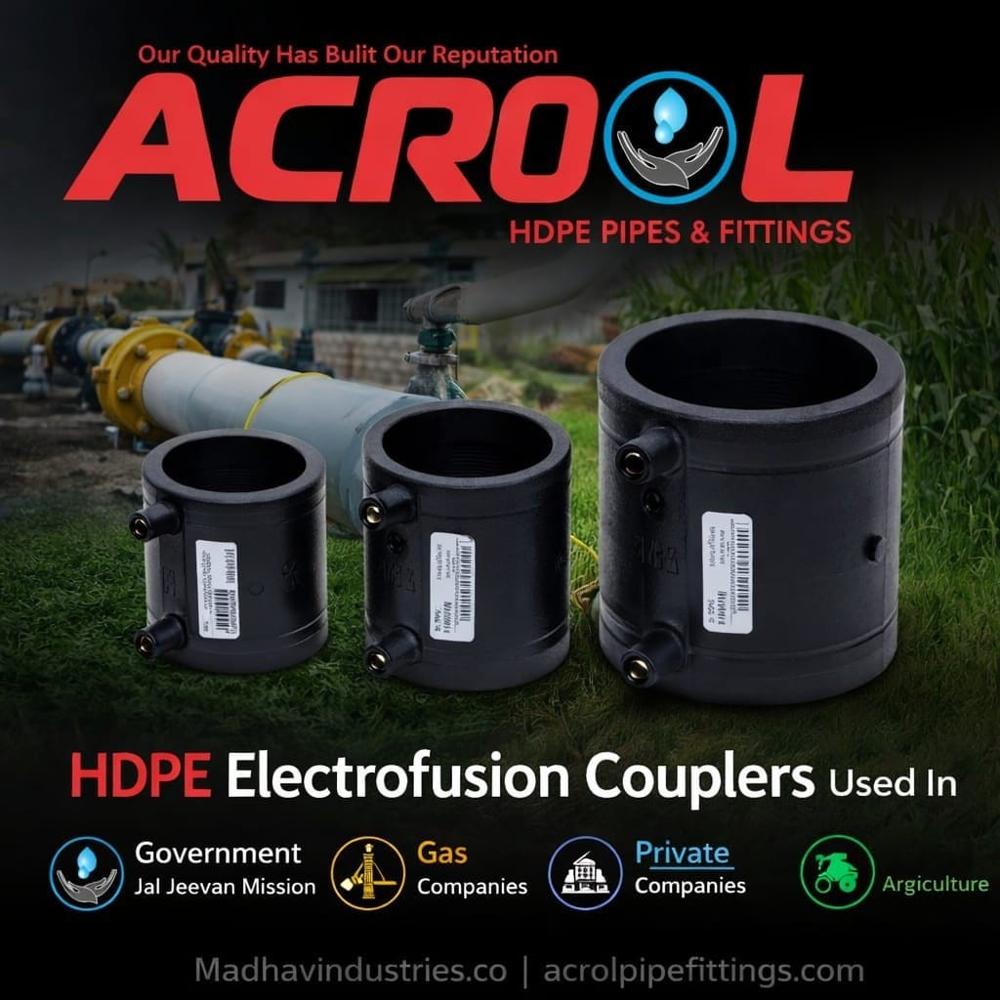

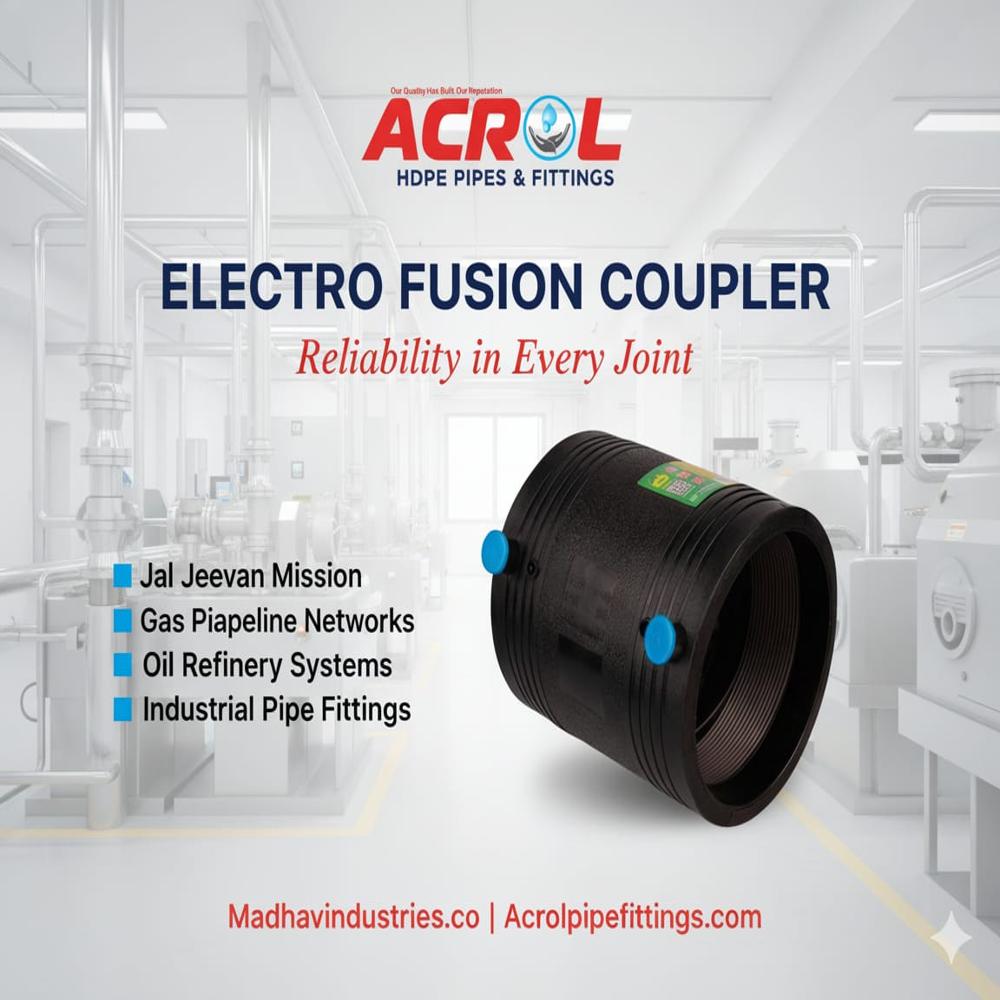

• Other, Electro Fusion Coupler

• Rated Pressure
• PN6 to PN16

• Sealing Type
• Fusion Welded (leak proof)

• Section Shape
• Other, Cylindrical

• Shape
• Other, Round/Cylindrical

• Standard
• Other

• Surface Treatment
• Other, Smooth / Plain

• Temperature Range
• -40C to +80C

• Tensile Strength
• 20 MPa

• Thickness
• 5 mm to 40 mm (varies with size)

• Thread Type
• Non-threaded

• Tolerance
• 0.5 mm

• Usage
• Jointing/Connecting HDPE Pipes

• Yield Strength
• 19 MPa

• Application
• other, Water Supply, Irrigation, Industrial Pipeline

• Bend Radius
• 5D to 20D (Depends on Diameter)

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded / Flanged Joint

• Diameter
• 40 mm - 630 mm

• Flexibility
• Moderate Flexibility

• Length
• Standard or As Required

• Material
• Other

• Material Grade
• PE 63 / PE 80 / PE 100

• Outer Diameter
• 40 mm to 630 mm (customizable)

• Product Type
• Other, Long Neck Pipe Stub End

• Rated Pressure
• 2.5 to 16 bar (Depending on SDR & Size)

• Sealing Type
• Fusion Welded

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Non-Coated, Smooth Finish

• Temperature Range
• -40C to +80C

• Tensile Strength
• >22 MPa

• Thickness
• As per Specification / SDR Standard (SDR 11, SDR 17 etc.)

• Thread Type
• Not Threaded

• Tolerance
• 1 mm

• Usage
• Pipe Fittings / Jointing in Pipeline

• Yield Strength
• 20-30 MPa

• Application
• other, Underground Water and Sewage, Agriculture, Industrial Piping

• Bend Radius
• 15 to 25 times OD (as per standard)

• Coating Type
• Uncoated

• Color
• Black with Blue Stripes

• Connection
• Other, Butt Fusion, Electro Fusion, Flanged

• Connection Type
• Fusion Welded, Flanged, Compression Fittings

• Diameter
• 20 mm to 1000 mm

• Flexibility
• High

• Length
• Standard 6 m / 12 m or custom as required

• Material
• Other

• Material Grade
• PE 63, PE 80, PE 100

• Outer Diameter
• 20 mm to 1000 mm

• Product Type
• Other, HDPE Pipe

• Rated Pressure
• 2.5 kg/cm2 to 16 kg/cm2 (PN 2.5 to PN 16)

• Sealing Type
• Heat Fused / Welded Joint

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth

• Temperature Range
• -40C to +80C

• Tensile Strength
• Above 21 MPa

• Thickness
• Varies (as per design/diameter)

• Tolerance
• As per IS 4984/14333 Standards

• Usage
• Water Supply, Irrigation, Sewage, Industrial Applications

• Yield Strength
• Standard as per IS

• Application
• other, Water Supply, Gas Pipeline, Industrial Pipeline Systems

• Color
• Black

• Connection
• Other, Electrofusion (Electrofusion Welding)

• Connection Type
• Electrofusion Socket

• Diameter
• 20 mm to 630 mm

• Flexibility
• Rigid (Slight Flexibility in Fitting Process)

• Length
• Standard / Custom as per request

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• Available from 20 mm to 630 mm

• Product Type

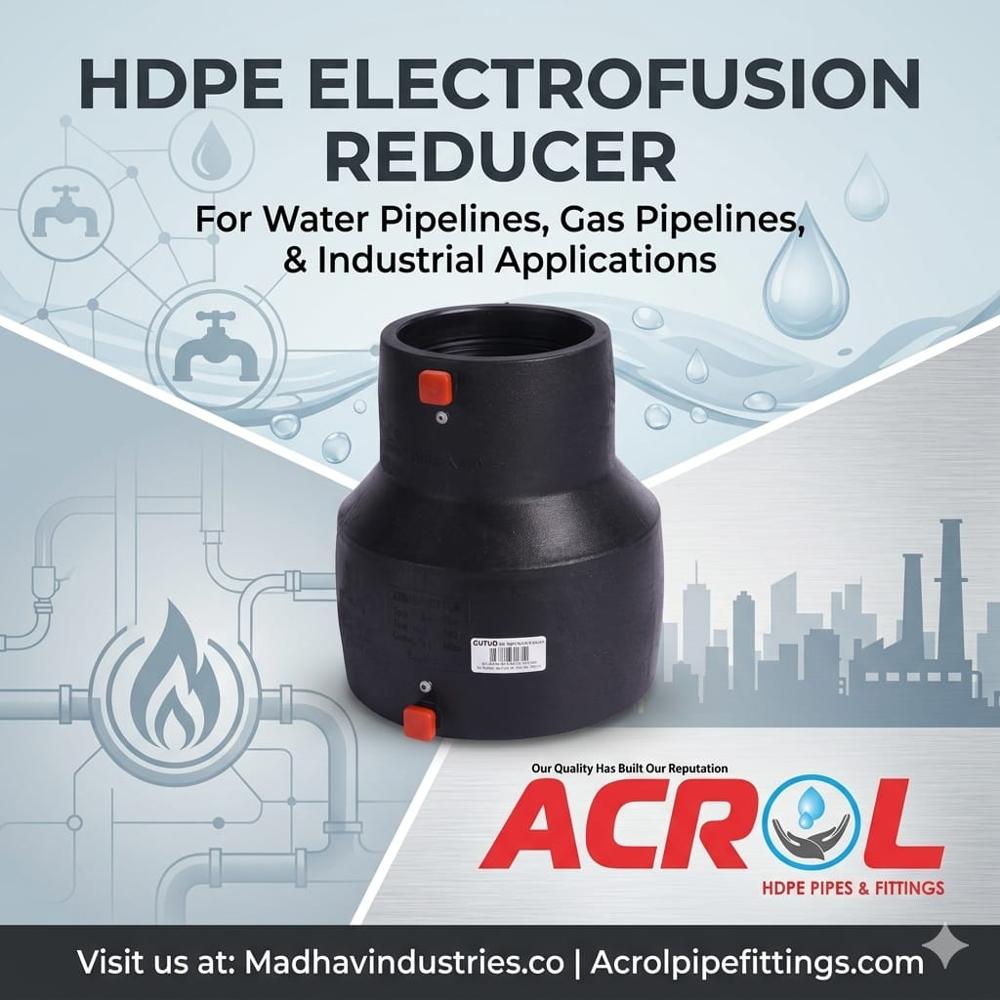

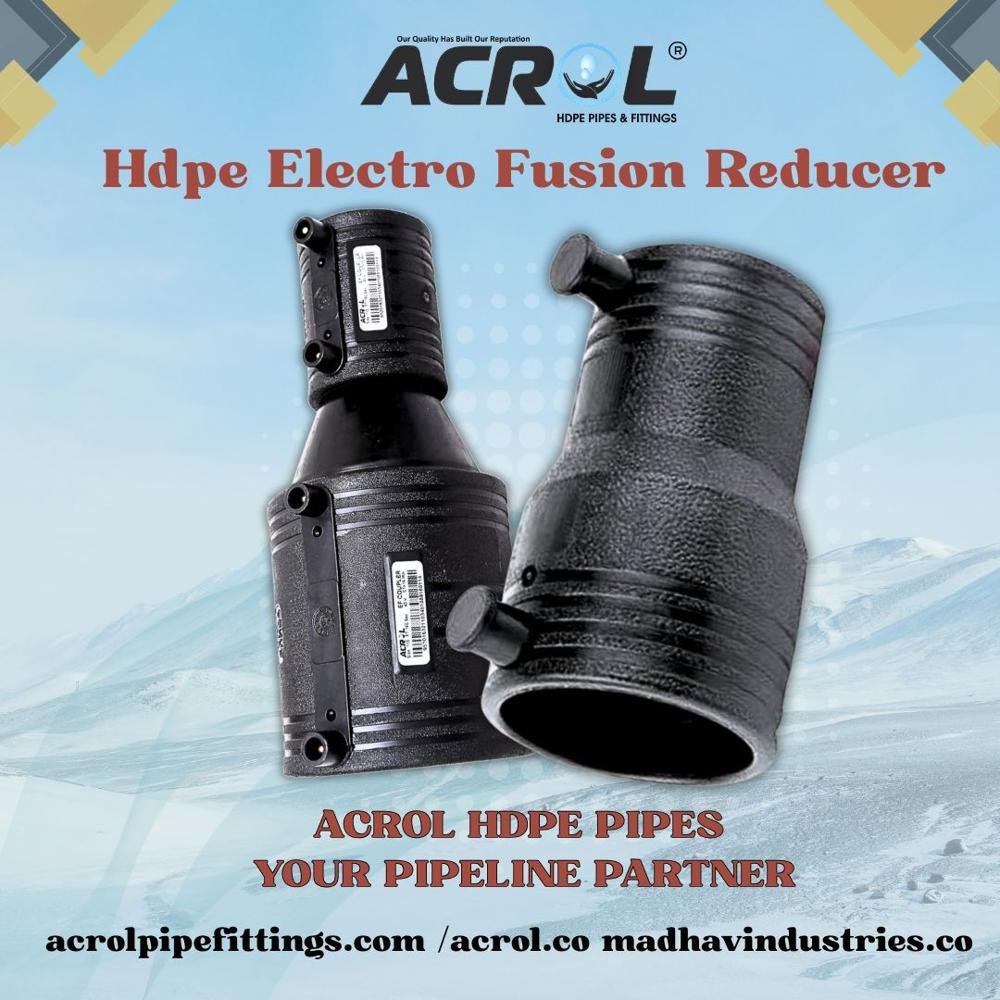

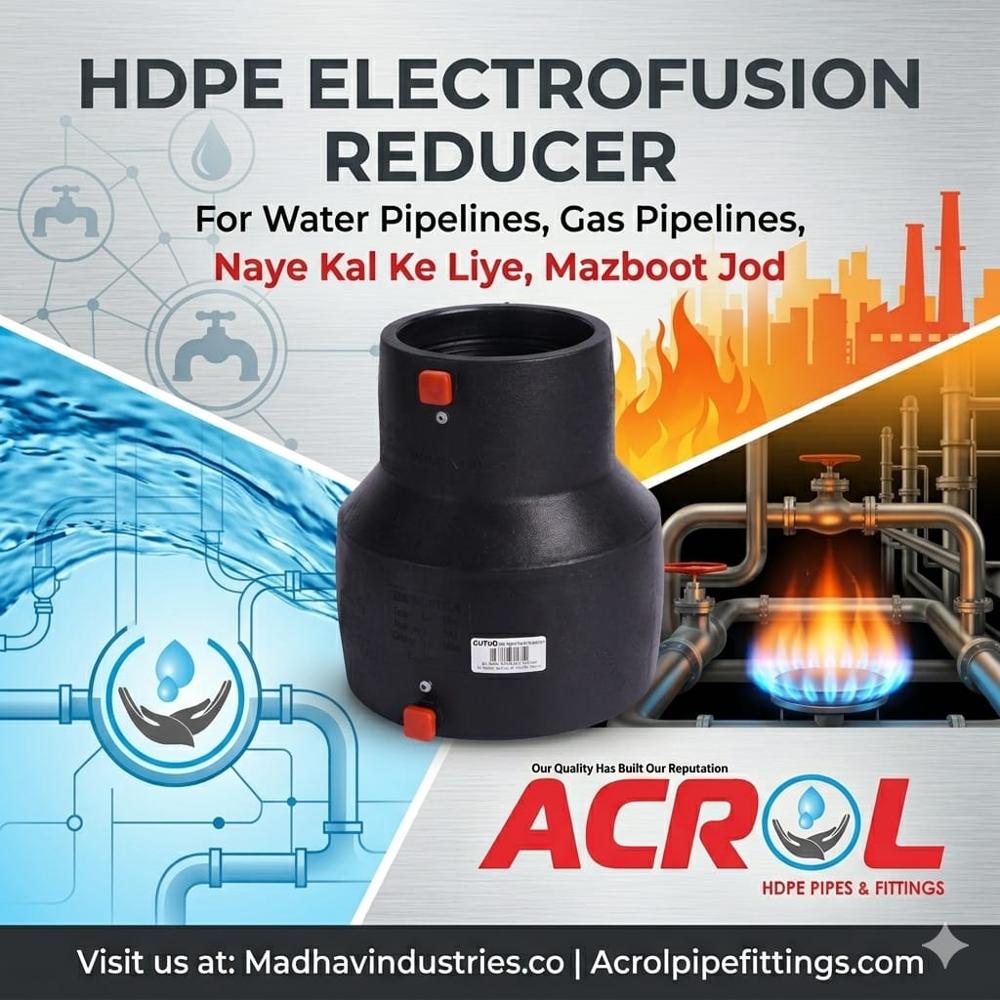

• Other, HDPE Electric Fusion Reducer

• Rated Pressure
• PN6, PN8, PN10, PN12.5, PN16

• Sealing Type
• Electric Fusion Welded Joint

• Section Shape
• Round

• Shape
• Other, Reducer

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 19 MPa

• Thickness
• As per standard specification (varies with diameter)

• Tolerance
• 1 mm

• Usage
• Pipe Fitting, Water Supply, Gas Distribution

• Yield Strength
• >= 19 MPa

• Application
• other, Domestic Water, Industrial Fluids, Agricultural Irrigation, Gas Distribution

• Bend Radius
• 20 to 35 times the pipe OD (depending on SDR and diameter)

• Coating Type
• Uncoated

• Color
• Black with blue stripes

• Connection
• Other, Butt Fusion, Electrofusion, Compression

• Connection Type
• Butt Weld, Socket Weld, Flanged, Compression

• Diameter
• 20 mm to 1000 mm

• Flexibility
• High Flexibility

• Length
• 6 m, 12 m (custom lengths available)

• Material
• Other

• Material Grade
• PE63, PE80, PE100

• Outer Diameter
• 20 mm to 1000 mm

• Product Type
• Other, HDPE Pipes and Fittings

• Rated Pressure
• PN 2.5 to PN 16

• Sealing Type
• Rubber Ring/Heat Fusion

• Section Shape
• Other, Circular

• Shape
• Other, Round (Pipes), Various (Fittings)

• Standard
• Other

• Surface Treatment
• Other, Smooth / Plain

• Temperature Range
• -40C to +80C

• Tensile Strength
• 23 MPa at 23C

• Thickness
• 2 mm to 60 mm (depending on diameter and pressure rating)

• Thread Type
• Not applicable (mainly welded or compression fitting)

• Tolerance
• 1% on diameter and thickness

• Usage
• Water supply, Gas supply, Sewage, Irrigation

• Yield Strength
• >19 MPa

• Application
• other, Drinking Water Supply, Water Distribution, Plumbing, Agriculture Irrigation

• Bend Radius
• 12 x OD (minimum recommended)

• Coating Type
• No External Coating (UV Stabilized Material)

• Color
• Black with Blue Stripes

• Connection
• Other, Butt Fusion, Electrofusion, Compression

• Connection Type
• Push Fit / Welded

• Diameter
• 32 mm

• Flexibility
• High Flexibility

• Length
• Available in 6 m, 12 m or coil lengths as per requirement

• Material
• Other

• Material Grade
• PE63/PE80/PE100

• Outer Diameter
• 32 mm

• Product Type
• Other, HDPE Pipe and Fittings

• Rated Pressure
• PN 2.5, PN 4, PN 6, PN 8, PN 10, PN 12.5, PN 16

• Sealing Type
• Rubber Seal or Heat Fusion

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >22 MPa

• Thickness
• 2.4 mm - 3.0 mm (varies by pressure rating)

• Thread Type
• Not Threaded (welded or compression type)

• Tolerance
• 1 mm

• Usage
• Water Supply, Irrigation, Industrial Applications

• Yield Strength
• >19 MPa

• Application
• other, Water supply, gas distribution, industrial pipelines

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Electrofusion Socket

• Diameter
• 20 mm to 315 mm

• Flexibility
• Rigid

• Length
• According to diameter specification

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• Available from 20 mm to 315 mm

• Product Type

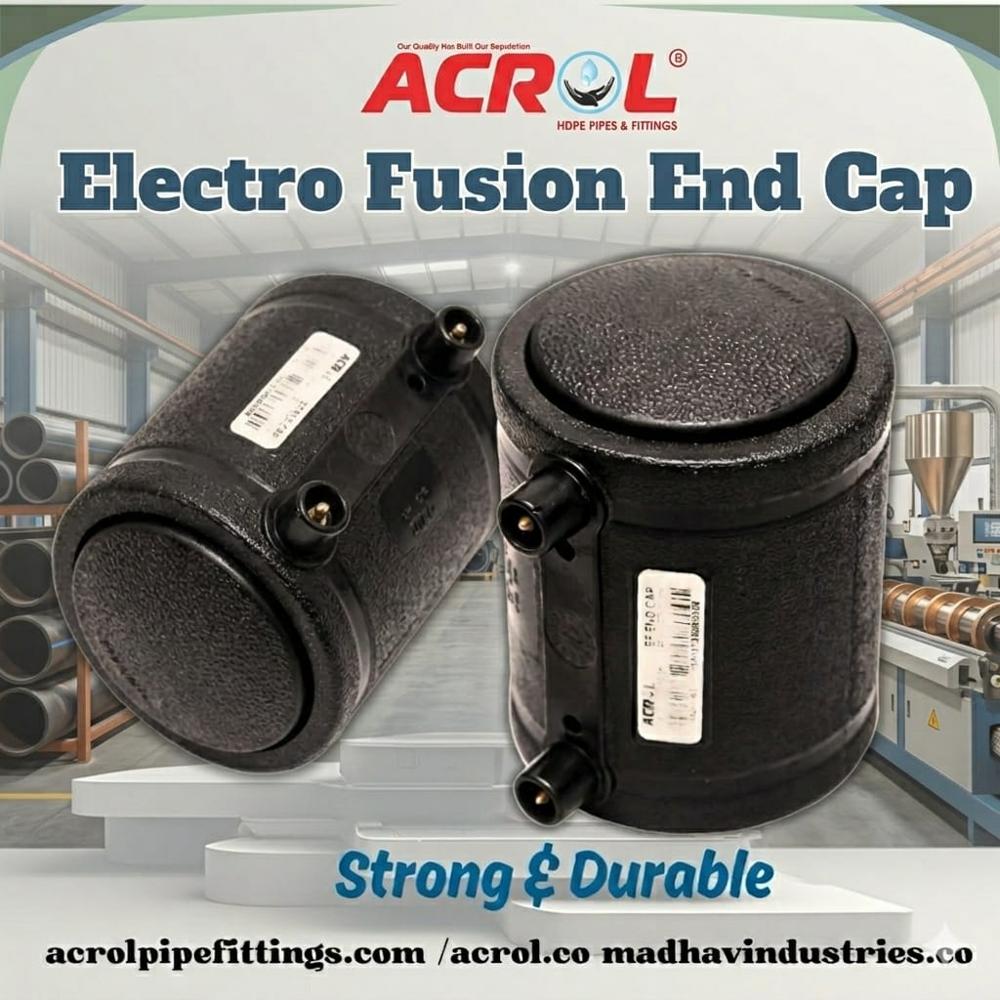

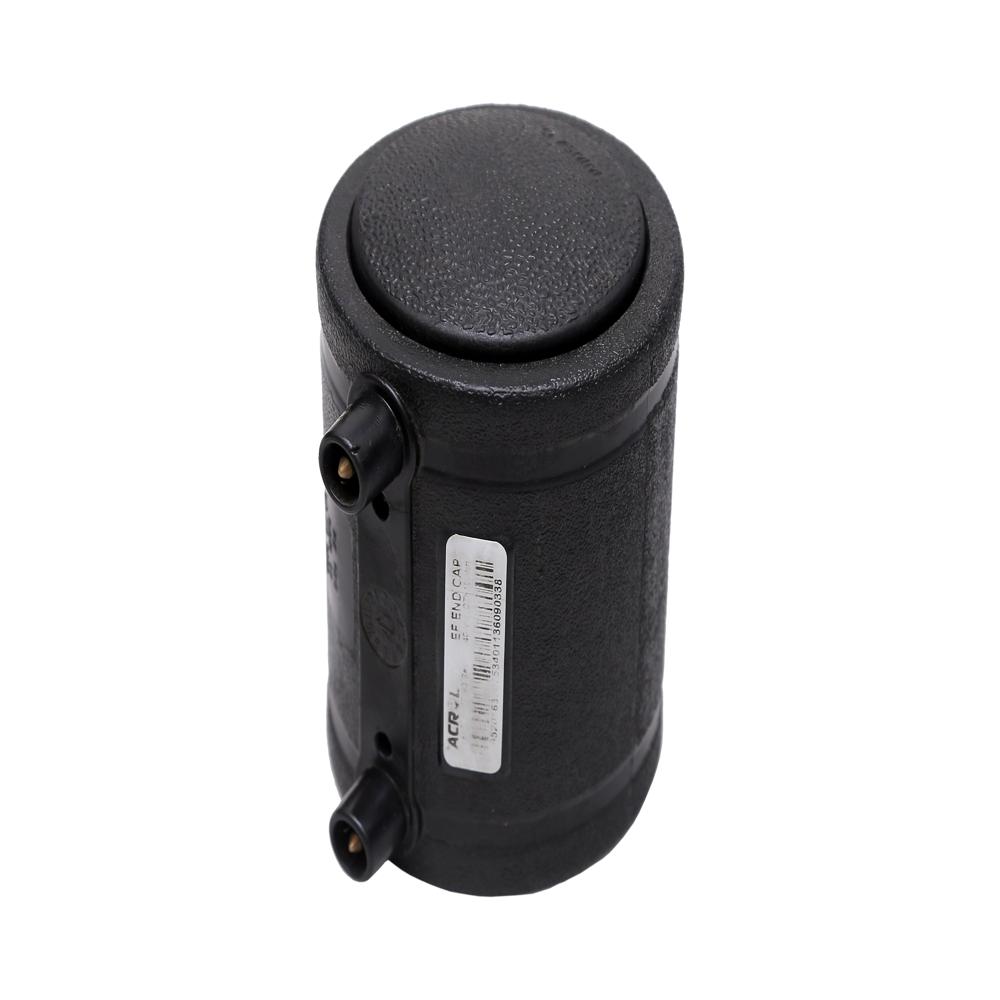

• Other, Electro Fusion End Cap

• Rated Pressure
• PN10/PN16

• Sealing Type
• Fusion Welded Seal

• Section Shape
• Other, Cylindrical

• Shape
• Other, Round/Cap

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 22 MPa

• Thickness
• Varies by size (typically 6 mm to 40 mm)

• Tolerance
• 0.5 mm

• Usage
• Pipe end capping/sealing

• Yield Strength
• >= 19 MPa

• Application
• other, Water Supply, Irrigation, Sewage

• Coating Type
• Epoxy Powder Coated

• Color
• Black/Grey/Blue

• Connection
• Other, Flanged Outlet with Clamp

• Connection Type
• Clamp or Flange

• Diameter
• 80 mm to 600 mm

• Flexibility
• Rigid

• Length
• Variable as per Diameter

• Material
• Other

• Material Grade
• GGG 50/ GJS 500-7

• Outer Diameter
• 80 mm to 600 mm

• Product Type

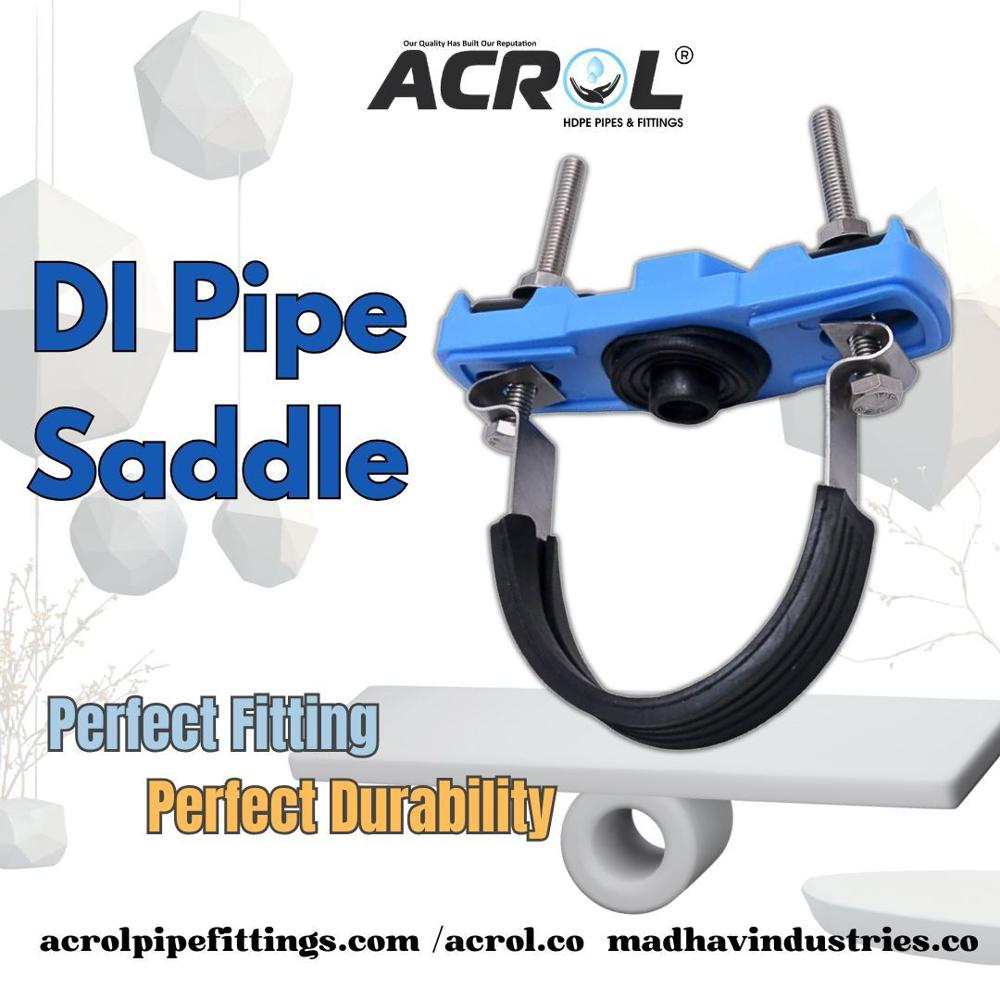

• Other, Pipe Saddle

• Rated Pressure
• PN10/PN16/PN25

• Sealing Type
• EPDM/NBR Rubber Gasket

• Section Shape
• Other, Circular

• Shape
• Other, Round with Saddle Profile

• Standard
• Other

• Surface Treatment
• Other, Fusion Bonded Epoxy Coated

• Temperature Range
• -10C to +80C

• Tensile Strength
• >=420 MPa

• Thickness
• 8-12 mm

• Thread Type
• BSP or NPT (as per request)

• Tolerance
• 0.2 mm

• Usage
• Tapping Outlet from Main Pipe

• Yield Strength
• >=300 MPa

• Application
• other, Pipeline Jointing, Service Connections

• Coating Type
• No additional coating

• Color
• Black/Blue

• Connection
• Other, Threaded

• Connection Type
• Clamp-on & Threaded

• Diameter
• 20 mm to 315 mm

• Flexibility
• Rigid

• Length
• 85 mm

• Material
• Other

• Material Grade
• Virgin Polypropylene, IS 319 Brass, SS 304

• Outer Diameter
• 63 mm

• Product Type
• Other, Service Saddle

• Rated Pressure
• PN10 / PN16

• Sealing Type
• EPDM Rubber Gasket

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -20C to 80C

• Tensile Strength
• Above 4500 N

• Thickness
• 5 mm

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.2 mm

• Usage
• Water Supply, Irrigation, Plumbing

• Yield Strength
• High

• Application
• other, Potable water and natural gas distribution pipelines

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Welded via Electrofusion

• Diameter
• 63 mm - 315 mm (main pipe) / 20 mm - 110 mm (branch outlet)

• Flexibility
• Rigid

• Length
• 85 mm to 240 mm (as per size)

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 63 mm to 315 mm (as per model)

• Product Type
• Other, Electro Fusion Service Saddle

• Rated Pressure
• PN10 / PN16

• Sealing Type
• Electrofusion Welded Joint

• Section Shape
• Other, Curved / Saddle

• Shape
• Other, Round Saddle

• Standard
• Other

• Surface Treatment
• Other, Smooth Finish

• Temperature Range
• -10C to +45C

• Tensile Strength
• 21 MPa (min)

• Thickness
• 4 mm to 15 mm (depending on size)

• Tolerance
• 0.2 mm

• Usage
• Branch connection for water and gas pipelines

• Yield Strength
• 19 MPa (min)

• Application
• other, Water Supply, Gas Distribution, Industrial Applications

• Bend Radius
• Short Radius (45 angle)

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electro Fusion

• Connection Type
• Electrofusion Welding

• Diameter
• 20 mm-400 mm

• Flexibility
• Rigid

• Length
• As per standard or customer specification

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• 20 mm to 400 mm

• Product Type
• Other, 45 Degree Electro Fusion Elbow

• Rated Pressure
• PN6, PN8, PN10, PN12.5, PN16

• Sealing Type
• Fusion Bonded

• Section Shape
• Round

• Shape
• Other, Elbow (45 Degree)

• Standard
• Other

• Surface Treatment
• Other, Smooth, Clean Finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 27 MPa (PE100 Grade)

• Thickness
• Customizable (as per specification)

• Tolerance
• 0.2 mm

• Usage
• Pipe Fitting for water, gas, and industrial pipelines

• Yield Strength
• >= 19 MPa

• Application
• other, Pipeline Systems-Water, Gas, Industrial Fluids

• Bend Radius
• Fixed (As per 90-degree bend design)

• Color
• Black

• Connection
• Other, Electro Fusion

• Connection Type
• Fusion Joint

• Diameter
• 20 mm to 400 mm

• Flexibility
• Rigid

• Length
• Proportionate to diameter (Elbow fitting)

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 20 mm - 400 mm

• Product Type
• Other, 90 Degree Electro Fusion Elbow

• Rated Pressure
• PN10, PN12.5, PN16

• Sealing Type
• Electrofusion Welded

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other

• Surface Treatment
• Other, Smooth, Cleaned

• Temperature Range
• -40C to +60C

• Tensile Strength
• >20 MPa

• Thickness
• 4 mm - 25 mm (varies by diameter)

• Tolerance
• 0.2 mm

• Usage
• Water Supply, Gas Distribution, Industrial Applications

• Yield Strength
• >18 MPa

• Application
• other, Industrial, Plumbing, Chemical Processing

• Bend Radius
• 1.5D

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 50 mm

• Flexibility
• Rigid

• Length
• 75 mm

• Material
• Stainless Steel

• Material Grade
• SS304

• Outer Diameter
• 50 mm

• Product Type
• Other, 90 Degree Elbow

• Rated Pressure
• up to 16 bar

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa

• Thickness
• 3 mm

• Tolerance
• 0.2 mm

• Usage
• Pipe Joint Fitting

• Yield Strength
• 205 MPa

• Application
• other, Water, Oil, Gas, Steam, and other pipeline systems

• Bend Radius
• Standard or custom as required

• Coating Type
• Epoxy / Hot Dip Galvanized / Black Primer

• Color
• Black / Silver / Grey

• Connection
• Other, Welded

• Connection Type
• Butt Weld / Socket Weld

• Diameter
• 1/2 inch to 24 inch

• Flexibility
• Rigid

• Length
• As per design requirement

• Material
• Other

• Material Grade
• IS 2062 / ASTM A234 WPB / SS304 / SS316 / EN8 (as specified)

• Outer Diameter
• 21.3 mm to 610 mm

• Product Type
• Other, 45 Degree Elbow Fabricated

• Rated Pressure
• Up to 20 Bar (dependant on size & material)

• Sealing Type
• Weld Sealed

• Section Shape
• Round

• Shape
• Other, Elbow (Bend, 45 Degree Angle)

• Standard
• Other

• Surface Treatment
• Other, Hot Dip Galvanized / Painted / Black Coated

• Temperature Range
• -20C to 400C

• Tensile Strength
• up to 480 MPa (Material Dependent)

• Thickness
• 2 mm to 20 mm (customizable)

• Thread Type
• Not Applicable / Plain End

• Tolerance
• 1 mm

• Usage
• Pipeline Bends, Flow Redirection

• Yield Strength
• min 260 MPa (Material Dependent)

• Application
• other, Water supply, potable water, chemical distribution, sewage, agriculture irrigation, industrial piping, gas transportation

• Bend Radius
• 20 to 30 times the pipe OD

• Coating Type
• UV resistant, no extra coating

• Color
• Black with blue stripes

• Connection
• Other, Butt fusion, Electrofusion, Flanged

• Connection Type
• Butt fusion, Electrofusion, Mechanical joint

• Diameter
• 20 mm to 1000 mm

• Flexibility
• Excellent

• Length
• 6 meters & 12 meters (customized lengths available)

• Material
• Other

• Material Grade
• PE63, PE80, PE100

• Outer Diameter
• 20 mm to 1000 mm

• Product Type
• Other, HDPE Pipe

• Rated Pressure
• 2.5 to 16 kg/cm2 (PN2.5 to PN16)

• Sealing Type
• Fusion welded joints

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other

• Surface Treatment
• Other, Smooth, untreated

• Temperature Range
• -40C to +60C

• Tensile Strength
• >= 21 MPa

• Thickness
• Varies (2 mm to 50 mm)

• Thread Type
• Not applicable (generally fusion or flanged)

• Tolerance
• 1% of standard dimension

• Usage
• Water supply, irrigation, gas distribution

• Yield Strength
• >= 19 MPa

• Application
• other, Plumbing, Industrial, Agricultural Piping

• Bend Radius
• Minimum 20 x Pipe OD

• Color
• Black

• Connection
• Other, Electrofusion

• Connection Type
• Electrofusion Welding

• Diameter
• 32 mm - 315 mm

• Flexibility
• Medium

• Length
• Variable as per size / specification

• Material
• Other

• Material Grade
• PE100

• Outer Diameter
• 32 mm to 315 mm

• Product Type
• Other, Electro Fusion Tee

• Rated Pressure
• PN10, PN16, PN20

• Sealing Type
• Electrofusion Welded

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other

• Surface Treatment
• Other, Plain / Smooth

• Temperature Range
• -40C to +60C

• Tensile Strength
• >21 MPa

• Thickness
• Up to 20 mm (varies by size)

• Tolerance
• 0.5 mm

• Usage
• Water Supply, Gas Pipeline, Irrigation

• Yield Strength
• >19 MPa

• Application
• other, Pressure piping systems for potable water, industrial liquids, and chemicals

• Bend Radius
• Minimum 20 times pipe OD

• Coating Type
• Not required (HDPE inherently chemical resistant)

• Color
• Black with Blue Stripes

• Connection
• Other, Butt Fusion / Electrofusion / Flanged

• Connection Type
• Butt welding, electrofusion, or mechanical joining

• Diameter
• Varies as per connection requirements (reducing branch diameter typically smaller than main)

• Flexibility
• Good flexibility with crack resistance

• Length
• As per fitting requirements or customized lengths

• Material
• Other

• Material Grade
• PE100 / PE80

• Outer Diameter
• Available from 63 mm to 630 mm (main & reducing branches as per request)

• Product Type
• Other, HDPE Fabricated Reducing Tee

• Rated Pressure
• PN6, PN8, PN10, PN12.5, PN16 (according to SDR choice)

• Sealing Type
• Homogenous weld or fusion joint

• Section Shape
• Other, Cylindrical

• Shape
• Other, Tee (Reducing)

• Standard
• Other

• Surface Treatment
• Other, Smooth and UV-stabilized finish

• Temperature Range
• -40C to +60C

• Tensile Strength
• >19 MPa

• Thickness
• As per SDR standards (main: SDR11 / SDR17; reducing: as required)

• Thread Type
• Not applicable (usually non-threaded welded ends)

• Tolerance
• 1% on dimensions

• Usage
• Water supply, irrigation, industrial pipeline networks

• Yield Strength
• >21 MPa

• Application
• other, Water supply, Gas, Irrigation, Sewage systems

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Butt Fusion Welded

• Connection Type
• Butt Fusion

• Diameter
• 63 mm to 630 mm

• Flexibility
• Rigid

• Length
• Standard/custom as per requirement

• Material
• Other

• Material Grade
• PE63, PE80, PE100

• Outer Diameter
• 63 mm to 630 mm (customizable)

• Product Type
• Other, Fabricated Equal Tee

• Rated Pressure
• PN6, PN8, PN10, PN12.5, PN16

• Sealing Type
• Heat Fused Joint

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other

• Surface Treatment
• Other

• Temperature Range
• -40C to +80C

• Tensile Strength
• >= 19 MPa

• Thickness
• As per PN rating (varies)

• Tolerance
• 1 mm

• Usage
• Pipe connection for water, gas, industrial lines

• Yield Strength
• >= 23 MPa

• Application
• other, Water, Oil, Gas, Chemical Industries

• Bend Radius
• As Per Specification

• Coating Type
• Hot Dip Galvanizing

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• As per Requirement

• Flexibility
• Rigid

• Length
• 250 mm - 1200 mm (Depending on Specification)

• Material
• Mild Steel

• Material Grade
• IS 2062 / ASTM A234 WPB

• Outer Diameter
• 100 mm - 600 mm (Customizable)

• Product Type
• Other, Fabricated Y Tee

• Rated Pressure
• Up to 20 Bar

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Y Shape

• Standard
• Other

• Surface Treatment
• Galvanized

• Temperature Range
• -10C to 180C

• Tensile Strength
• 345 MPa Min

• Thickness
• 6 mm

• Tolerance
• 1 mm

• Usage
• Pipeline Fitting

• Yield Strength
• 240 MPa Min

• Application
• other, Ceiling Tile Suspension

• Bend Radius
• Fixed

• Coating Type
• Zinc Coated

• Color
• Silver

• Connection
• Other, Snap-in / Interlocking

• Connection Type
• Interlocking Clip

• Flexibility
• Rigid

• Length
• 600 mm / 1200 mm

• Material
• Other

• Material Grade
• G90

• Outer Diameter
• 25 mm (cross bar width)

• Product Type
• Other, Fabricated Cross Tee

• Sealing Type
• Open

• Section Shape
• Other, Rectangular with Cross

• Shape
• Other, Cross Tee (T-shaped intersecting)

• Standard
• Other

• Surface Treatment
• Other, Hot-Dipped Galvanized

• Temperature Range
• -10C to +60C

• Tensile Strength
• 295 MPa

• Thickness
• 0.30 mm - 0.50 mm

• Tolerance
• 1 mm

• Usage
• Suspended Ceiling Grids

• Yield Strength
• 255 MPa

• Application
• other, Water / Gas / Oil Pipeline Connection

• Bend Radius
• Standard as per ASME B16.9

• Coating Type
• Epoxy / Zinc / Painted

• Color
• Black / Silver Grey (Depending on Surface Treatment)

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Reducing sizes available as per order

• Flexibility
• Rigid

• Length
• Custom / As Per Requirement

• Material
• Other

• Material Grade
• A234 WPB / SS304 / SS316 / IS 2062

• Outer Diameter
• 1/2 inch to 24 inch (DN15-DN600)

• Product Type
• Other, Fabricated Reducing Cross Tee

• Rated Pressure
• PN6 to PN25 / Sch. 40/80

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Cross Tee (Reducing)

• Standard
• Other

• Surface Treatment
• Other, Black Painted / Galvanized / Anti-rust Coated

• Temperature Range
• -20C to +350C

• Tensile Strength
• 415 MPa

• Thickness
• 3 mm to 12 mm

• Thread Type
• Not Applicable (Welded Fitting)

• Tolerance
• 1 mm

• Usage
• Pipe Fitting / Plumbing / Oil & Gas / Chemical Industry

• Yield Strength
• 240 MPa

• Application
• other, Water Supply, Gas Distribution, Sewage Systems, Industrial Piping

• Bend Radius
• Not intended for bending

• Coating Type
• Uncoated

• Color
• Black

• Connection
• Other, Electrofusion welding

• Connection Type
• Fusion joint

• Diameter
• 20 mm to 630 mm

• Flexibility
• Rigid

• Length
• Varies by diameter, generally 100 mm - 400 mm

• Material
• Other , High Density Polyethylene (HDPE)

• Material Grade
• PE100

• Outer Diameter
• 20 mm to 630 mm

• Product Type
• Other, HDPE Electrofusion Coupler

• Rated Pressure
• PN16 (up to 16 bar)

• Sealing Type
• Integral heat fusion seal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ISO 4427 / EN 12201 / DIN 8074

• Surface Treatment
• Other, Smooth, Untreated

• Temperature Range
• -40C to +60C

• Tensile Strength
• 25 MPa @ 23C

• Thickness
• Varies by size (nominal 10 mm - 45 mm)

• Tolerance
• 1 mm

• Usage
• Pipe Jointing

• Yield Strength
• 19-23 MPa

• Application
• other, Water Supply, Gas Distribution, Irrigation, Industrial Pipelines

• Color
• Black

• Connection
• Other, Electrofusion Welding

• Connection Type
• Electrofusion Coupling

• Diameter
• 32 mm - 315 mm

• Flexibility
• Rigid

• Length
• Standard fitting size, typically 100 mm to 250 mm

• Material
• Other , High Density Polyethylene (HDPE)

• Material Grade
• PE100 / PE80

• Outer Diameter
• Available from 32 mm to 315 mm

• Product Type
• Other, HDPE Electrofusion Reducer

• Rated Pressure
• PN10, PN12.5, PN16

• Sealing Type
• Fusion Bonded, Leakproof Joint

• Section Shape
• Round

• Shape
• Other, Reducer / Concentric

• Standard
• Other, ISO 4427 / DIN 8074 / EN 12201

• Surface Treatment
• Other, Smooth, Uncoated

• Temperature Range
• -40C to +60C

• Tensile Strength
• >20 MPa

• Thickness
• 4 mm to 20 mm (depending on diameter)

• Tolerance
• 1 mm

• Usage
• For connecting pipes of different diameters in water and gas supply

• Yield Strength
• >15 MPa
